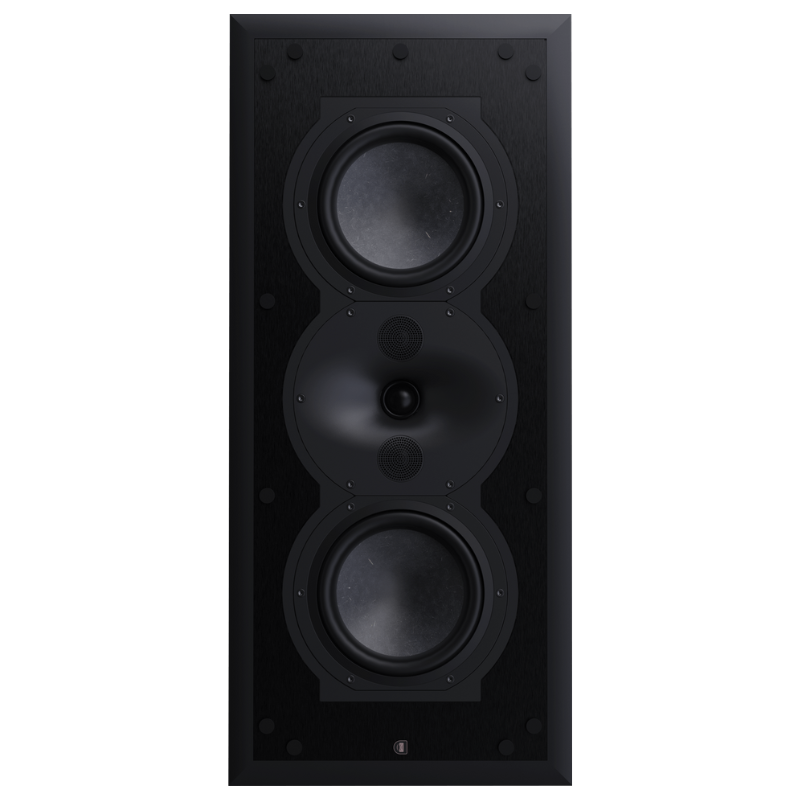

PERLISTEN R5i-LR崁入式揚聲器

The next level in-wall with Directivity control to even lower frequencies while enabling a DPC array and timbre matching not only in the raw materials but in the critical frequency response, power response, phase. Based on the R5t tower, the R5i-LR is THX Dominus surround and Ultra LCR certified.  A true value in the medium size home theater in-wall compared to almost any in-wall on the market and can be utilized as an LCR with an acoustically transparent screen or as an LR in the Media room.

STANDARD FINISHES

爵色黑

SPECIFICATIONS

Dimensions (HxWxD)665 x 298 x 111mm
26.2 x 11.8 x 4.4″

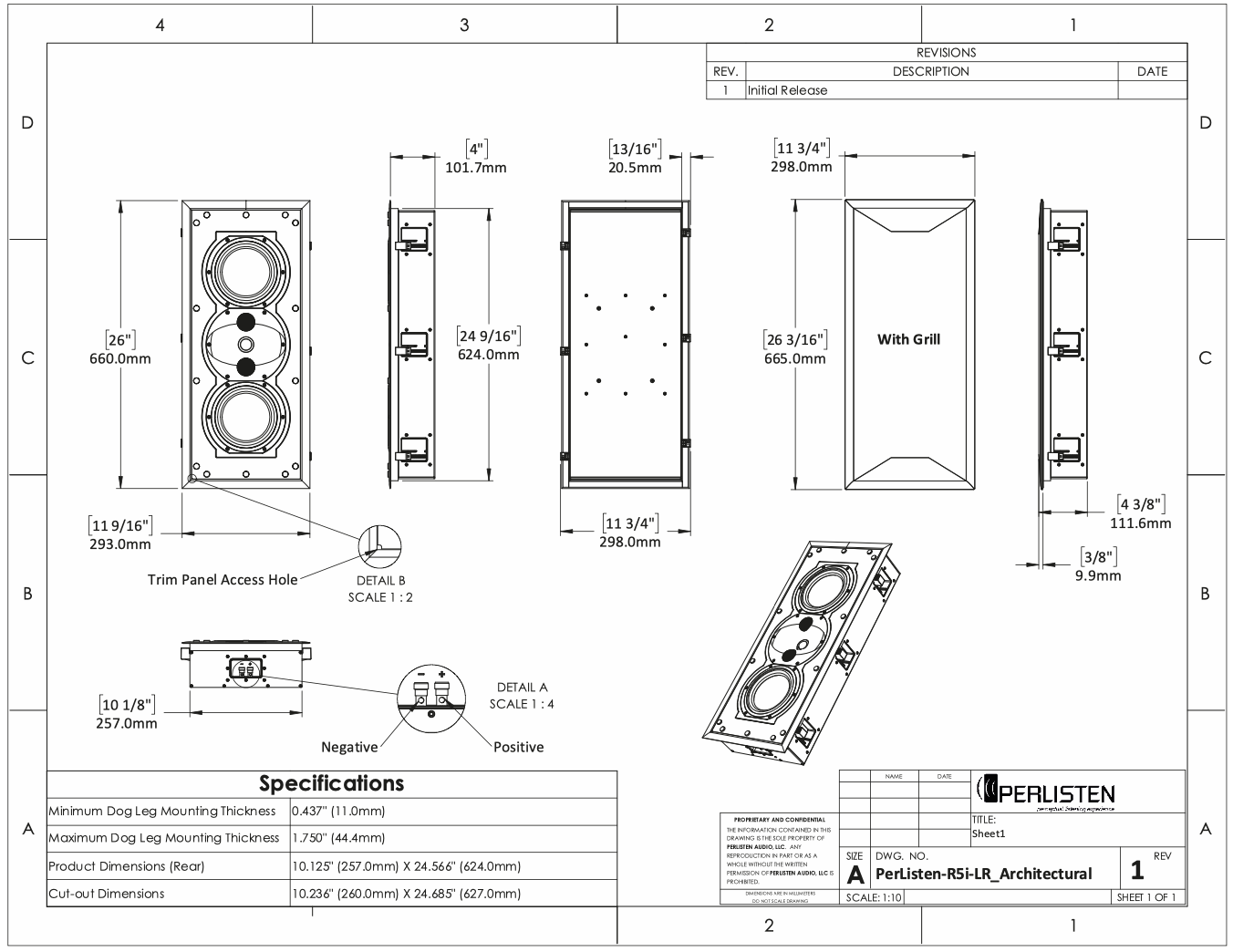

Mounting dimensions
(HxWxD)
624 x 257 x 101.7mm
10.1 x 24.6 x 4.0″
Weight15.9 kg (35.0 lbs.)
Available finishesWhite grille, Black baffle
Enclosure Alignment3-way acoustic suspension
Driver complimentDCP-Array:
26mm(3) Silk dome
Woofers:
165mm(2) HPF diaphragms
Sensitivity89.4dB / 2.83v / 1.0m
Impedance4Ω nominal / 3.3Ω min

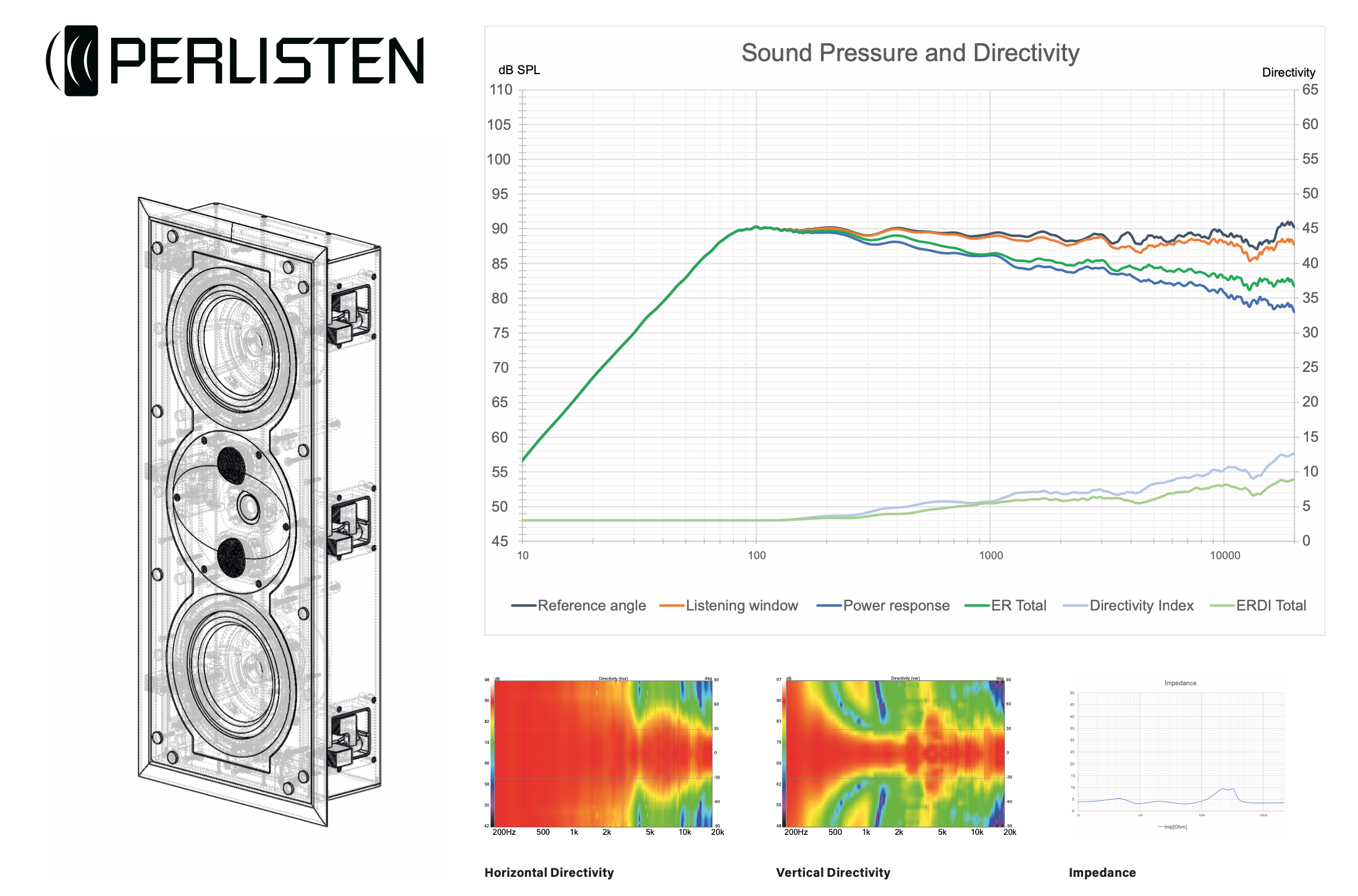

Frequency Response (+/-1.5dB)80 – 20kHz +/-1.5dB window
Frequency Response (-10dB)40 – 32kHz
Typical In Room bass extension34Hz
Recommended Amplifier Power50 – 250W RMS
SPL capability (100-20kHz)113.4dB peak
111.0dB peak <3% – 2nd, 3rd Harmonics
CertificationTHX Dominus, THX Ultra
