PERLISTEN R2ic崁頂式揚聲器

The R2ic is the workhorse of the in-ceiling line with the ability to be anything you need them to be.  Speakers in your whole house system for musicality that out classes many in-room speakers, home theater surrounds, in ceiling LCR, or even home theater wide channels. This two-way design features the same great Silk dome tweeter with our custom paper pulp 6.5” woofers as our R-Series in-walls and highly regarded in-room speakers.

This enables a flat frequency response angled for 30-degree main listening window with off axis and power response to match our in R-Series speakers for flawless timber matching needed for true immersive audio.  An open back speaker for shallow depth installations where sound isolation is not a design criteria. Better coverage for even response in any application from Home Theater to better coverage in your kitchen with no compromises!

STANDARD FINISHES

爵色黑

SPECIFICATIONS

Enclosure Alignment2-way infinite baffle, optional rear enclosure
Driver complimentDPC Array:
28mm silk dome tweeter Woofers:
165mm Alum frame, HPF pulp
Sensitivity86.0dB / 2.83v / 1.0m
Impedance6Ω nominal /  Ω min
Listenting Window (from 30deg Ref)Horizontal: +/-30 deg
Vertical: +/-30 deg
Response Linearity100 – 10kHz +/-1.5dB window
Frequency Response44 – 27kHz (-6dB)
31 – 32kHz (-10dB)
Typical In Room bass extension32Hz (-6dB)
22Hz (-10dB)

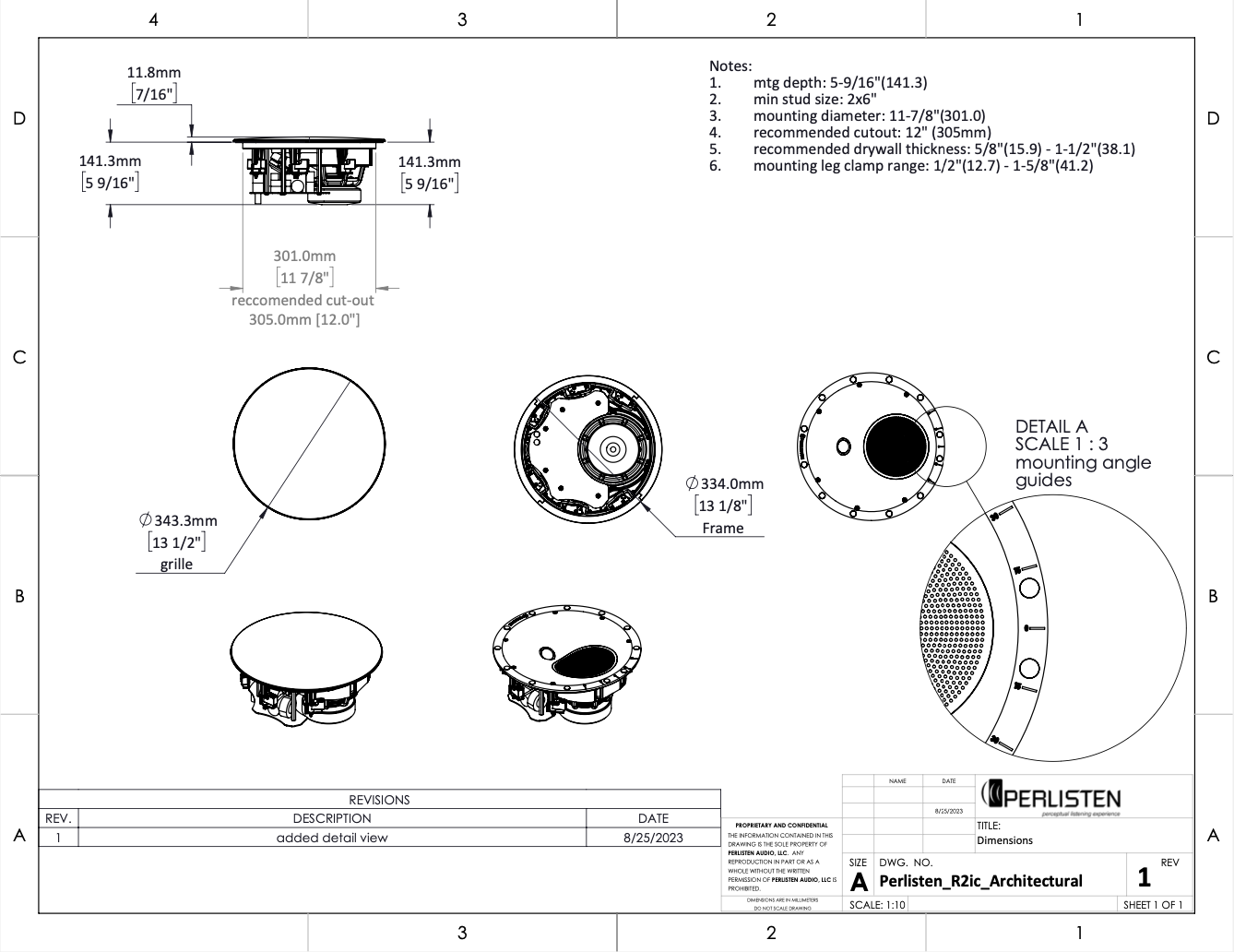

Overall Dimensions (with grille)343.3 diam x 153.1mm depth
13.5″ diam x 6.0″ depth
Recommended cutout305mm diameter
12″ diameter
Weight11.8lbs. (5.4kg)
Recommended Amplifier Power50 – 150W (with 80Hz HPF)
50 – 100W (full range)
SPL capability @1m (100-20kHz)109.5dB peak
109.0dB peak <3% 2nd, 3rd Harmonics
CertificationTHX Ultra
